Injection Rubber Moulding

Maximum Durability and Versatility

Injection Rubber Moulding has an almost infinite amount of uses from making Rubber Gaiters  for joystick manufacture, where these is a need for high volume but with a high level of constancy across multiple batches, oil seals where accuracy is essential to water couplings to avoid leakage. Even buttons for breathing apparatus where precision and durability is paramount where lives are at risk.

At SRM we have an unparalleled knowledge of injection rubber moulding and have worked across a broad range of industry sectors including: Rail, Petrochemical, Construction and Healthcare to name but a few.

All of our moulds are engineered in house by our highly skilled CNC Mould-makers, this give our customer the peace of mind that we can manage the who process from initial design through to distribution on time and on budget.

In short we INNOVATE | ENGINEER | DELIVER

The Injection Moulding Process

The rubber injection moulding process works by significantly heating the rubber and using a very high pressure to inject the rubber compound in to the mould. From there it is injected through the runner system in the tool into the cavities of the closed hot mould. The combination of pressure, temperature and time facilitates the crosslinking of chemical bonds commonly referred to as vulcanization. Process parameters are usually programmed into the press to control temperature, volume and rate that compound is injected into the mould cavities

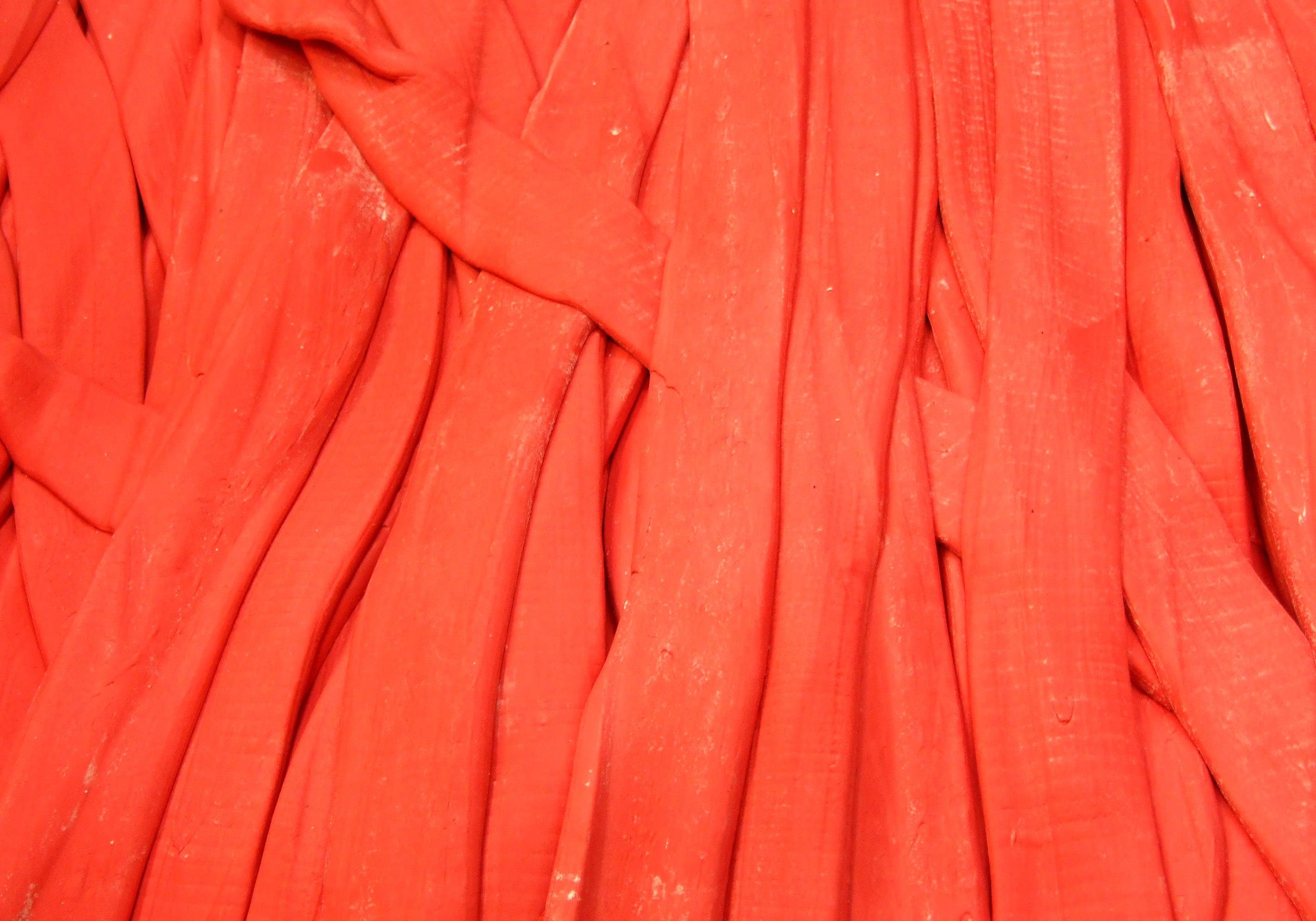

Injection rubber moulding - raw material

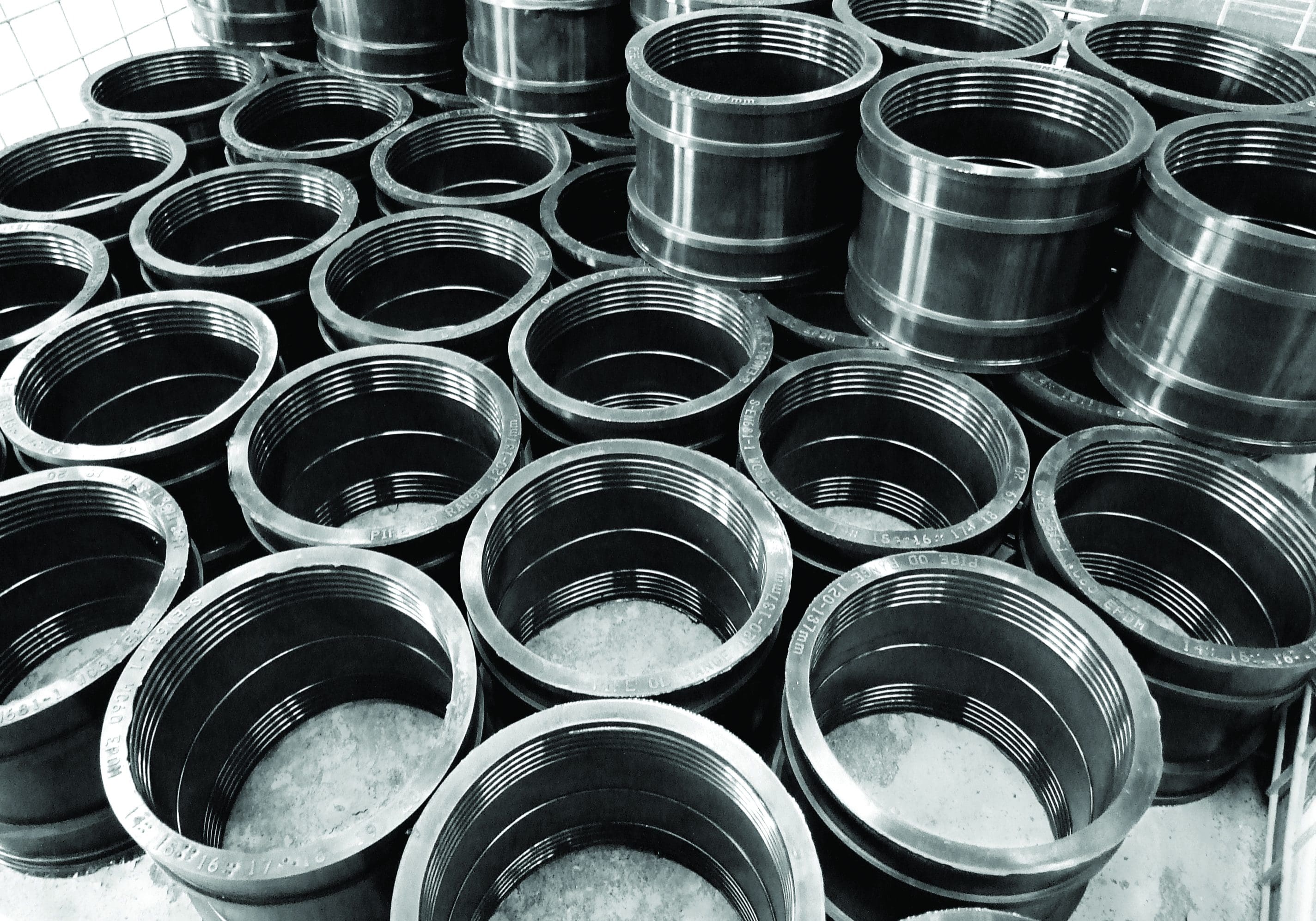

Injection rubber moulding product

The Benefits of Injection Rubber Moulding:

Frequently Asked Questions

What materials can you inject?

We can inject the full spectrum of materials including Natural rubber, Silicone, Neoprene and Nitrile. Contact us for more information

What is our injection shotweight capacity?

We can inject in excess of 4kgs of rubber into the mould tool.

What size injection moulding machines do we have?

We have 17 machines ranging from 27t to 400t to suit a broad range of jobs

“SRM were a pleasure to work with they provided us the clarity and direction, they were always at hand to answer any concerns and gave us the confidence to invest in our future”
